Burn Gel Dressing

Burn Gel Dressing

Details
Medical-grade burn gel dressing integrating a non-adherent textile carrier pre-saturated with 90% water-soluble cooling hydrogel. Facilitates thermal energy dissipation, covers partial-thickness burns, and eases trauma during emergency care. CE 0197, ISO 13485, and FDA compliant.
Category
Burn Gel Dressing

Send Inquiry
Description
Technical Parameters
5

Product Overview

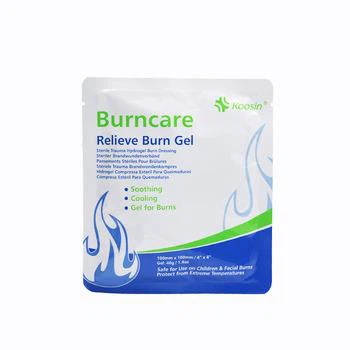

Our burn gel dressing is a sterile, single-use primary sheet dressing constructed from an open-weave non-linting textile carrier infused with a water-soluble cooling matrix consisting of 90% purified water, medical silicone emulsion, and cutaneous conditioners. Developed for early-stage intervention across thermal and actinic injuries, this burn gel dressing draws excess thermal energy away from the burn site to help restrict heat penetration into deeper dermal strata while forming a protective barrier against ambient particulates. The structural fabric pad maintains uniform moisture distribution over irregular anatomical contours without fluid run-off or premature matrix drying.





Technical Specifications





Item Specification
Product Name Burn Gel Dressing (Sterile Burn Relief Hydrogel Dressing Sheet)
Dressing Type Hydrogel-Impregnated Primary Burn Contact Dressing / Emergency Burn Sheet
Base Material / Active Ingredient Soft non-woven carrier substrate impregnated with water-soluble hydrogel: 90% Purified Water, Medical-Grade Silicone Oil Emulsion, Water-Soluble Azone, Glycerol, Propylene Glycol
Sterility Sterile (Single-use disposable device)
Material Structure

Gel Viscosity: 5,000–30,000 mPa·s (25 ± 2°C);

Chemical pH: 5.0–7.5;

Gel loading weight range: 2 g to 750 g (per size configuration);

Gel appearance: Clear, homogeneous, white or yellowish fluid gel

Packaging Sealed tamper-evident foil peel pouch; 4 to 20 pouches per clinical dispenser box; export master corrugated cartons
Sterilization Method Gamma Radiation Sterilization
Shelf Life 5 Years (60 Months)
Storage Condition Store in a clean, ventilated room at temperatures between 0°C and 40°C with relative humidity ≤ 80%; keep away from corrosive gases and direct sunlight
OEM / ODM Support Supported (Custom pad dimensions, gel volume weight, emergency wrap blanket formats, private branding, multi-language first aid kit cartons)







Key Features



Structural fabric carrier scaffold – stabilizes the viscous hydrogel over vertical and mobile bodily surfaces, helping eliminate gel displacement and ensuring consistent surface coverage.

Rapid thermal dissipation mechanism (90% aqueous phase) – draws retained heat away from injured skin strata through conductive energy transfer, which helps attenuate the inward progression of thermal tissue necrosis.

Silicone-emulsion conditioned contact layer – minimizes physical adherence to delicate blister membranes and denuded dermis, facilitating painless dressing removal without disturbing forming granulation tissue.

Physical particulate barrier – covers exposed sensory nerve endings, which helps diminish sensitivity caused by ambient airflow while shielding raw wound margins from airborne particulate settlement.

Water-miscible clearance profile – rinses cleanly away from the wound base using sterile saline or water, helping clinical staff inspect the trauma site without mechanical scrubbing.

Controlled rheological viscosity (5,000–30,000 mPa·s) – ensures the formulation conforms flexibly to anatomical angles (such as hands, joints, and facial contours) without pooling into skin folds.

Physiologically tuned pH threshold (5.0–7.5) – aligns with cutaneous tolerance, helping prevent chemical stinging or secondary irritation upon immediate emergency contact.

Heavy-gauge foil hermetic packaging – prevents aqueous phase evaporation over a 5-year storage life, ensuring instant readiness in field paramedic kits and municipal emergency response packs.

2



3



Sheet Application Protocol & Field Guidance



Thermal Trauma Procedure:

Open the aseptic foil envelope and extract the saturated burn gel dressing sheet.

Unfold the pad smoothly and drape it over the injured skin margin without stretching the fabric.

Empty any fluid remaining within the pouch across the top of the carrier to maximize local hydration.

Maintain uncompressed contact across the burn area for a duration of at least 30 minutes.

If patient transit is required, secure the pad loosely with a non-constrictive conforming bandage, avoiding localized compressive force.



For Chemical Burns:

  • Liquid chemicals: Irrigate the affected skin immediately with copious cold tap water for 15 to 20 minutes.
  • Powder chemicals: Carefully brush off dry chemical residues from the skin surface, then irrigate with cold water for 15 to 20 minutes.
  • After thorough irrigation, apply the burn gel dressing sheet following the standard thermal burn procedure.



Removal & Cleansing:

  • Lift the corner of the sheet dressing using clean forceps or a gloved hand; the non-adherent carrier lifts off smoothly.
  • If residual gel remains, rinse gently with sterile saline or clean water.





Sizes & Packaging Details



Dressing Sheet Size Gel Weight per Unit Intended Channel / Usage
5 cm x 5 cm (2" x 2") 2–9.9 g First Aid Kits / Small Blister Burns
5 cm x 15 cm (2" x 6") 10–19.9 g Wrist / Forearm / Finger Burns
10 cm x 10 cm (4" x 4") 20–39.9 g Standard Workplace Safety / Scalds
20 cm x 20 cm (8" x 8") 40–119.9 g Facial Burns / Shoulder & Limb Areas
30 cm x 30 cm (12" x 12") 120–250 g Torso / Back / Paramedic EMS Kits
30 cm x 40 cm (12" x 16") 200–350 g Large Thigh / Chest Thermal Coverage
40 cm x 60 cm (16" x 24") 300–500 g Industrial Fire Rescue Wrap
120 cm x 160 cm (47" x 63") 750 g Full-Body Emergency Burn Blanket



Commercial OEM & Packaging Capabilities

  • Hermetic Multi-Laminate Foil Pouches: Engineered with heavy-barrier aluminum foil layers to preserve the 90% water content and stable viscosity over a 5-year storage window.
  • Dispenser Cartons: Stiff white card dispenser boxes equipped with tear-open access tabs, GS1-128 barcodes, batch tracking, and step-by-step graphical instruction icons.
  • Kit Assembler Supply: Capability to deliver unbranded bulk inner pouches or customized branding specifically tailored for third-party first-aid box manufacturers and military trauma kit packagers.



5



1

Quality & Regulatory Information



ISO 13485:2016 Certified: Produced under a validated quality management system covering sterile medical device formulation, cleanroom pouch sealing, and packaging.

CE Marking (CE 0197): Evaluated and certified in conformity with European Medical Device Directives/Regulations for sterile burn care devices.

U.S. FDA Registered / Listed: Listed in compliance with 21 CFR medical device regulations for hydrogel wound and burn dressings.
